CIJ Printer 6 Lines with Dual Cleaning

Model

H9000

H9100

H9200

Character lattice

5,7,9, 10, 12, 14, 15, 24 dots

5,7, 9, 10, 12,14, 15, 24, 34 dots

Max number of printing lines

4 lines

6 lines

Character height

1.8mm-15mm

1.8mm-18mm

Automatic cleaning function

Automatic inside deaning of the nozzle

Automatic inside cleaning of the nozzle/outside ceaning the nozzle

Viscosity detection

Time-of-flight viscosity testing & physical viscometer testing

Nozzle cover

Ordinary nozzle cover

Nozze cover with built-in small window and magnifier

Printing speed

Up to 300m/min(5 dots font)

1D code

UPC A&E: EAN 8&13: Code 128A,B&C: UCC/EAN 128; Code 39: I25 code; GS

2D code

DM; QR error correction mode L, M, Q or H

Pattern

LOGO

Information storage

1000 items

Language

Chinese, Traditional Chinese, English, ltalian, German, Portuguese, Persian, Vietnamese, PolishRussian, Arabic and other languages

User interface

8-inch high-sensitivity TFT LCD touch screen, What You See ls What You Get touch screen, can easily edit information

Input/output interface

Synchronizer, electric eye, alarm light, USB, network port, RS-232

SmartCloud

Remote alarm, remote management, remote ink solvent level monitorin

Protection level

IP65

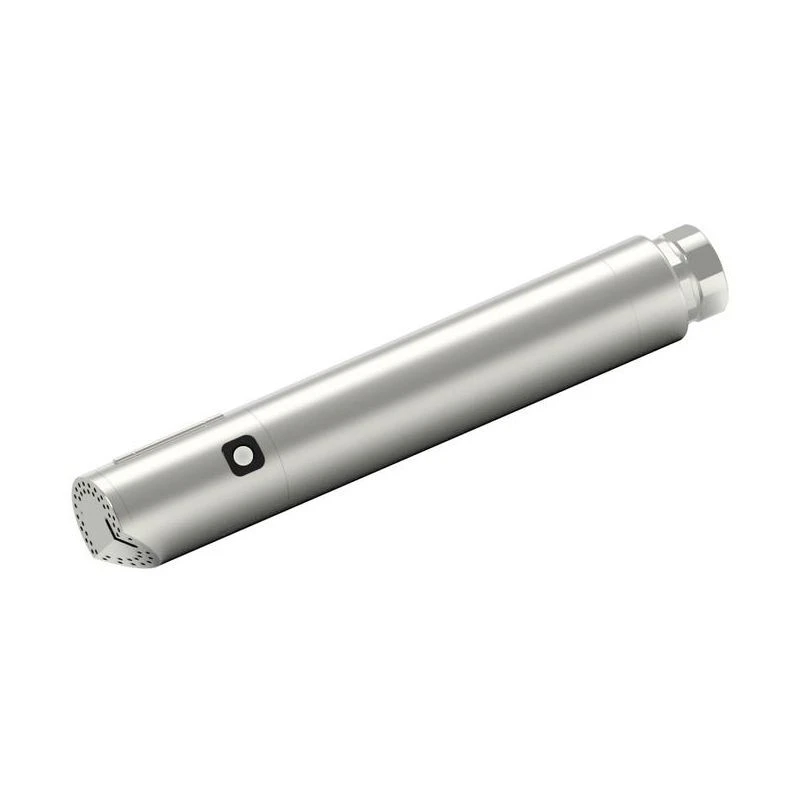

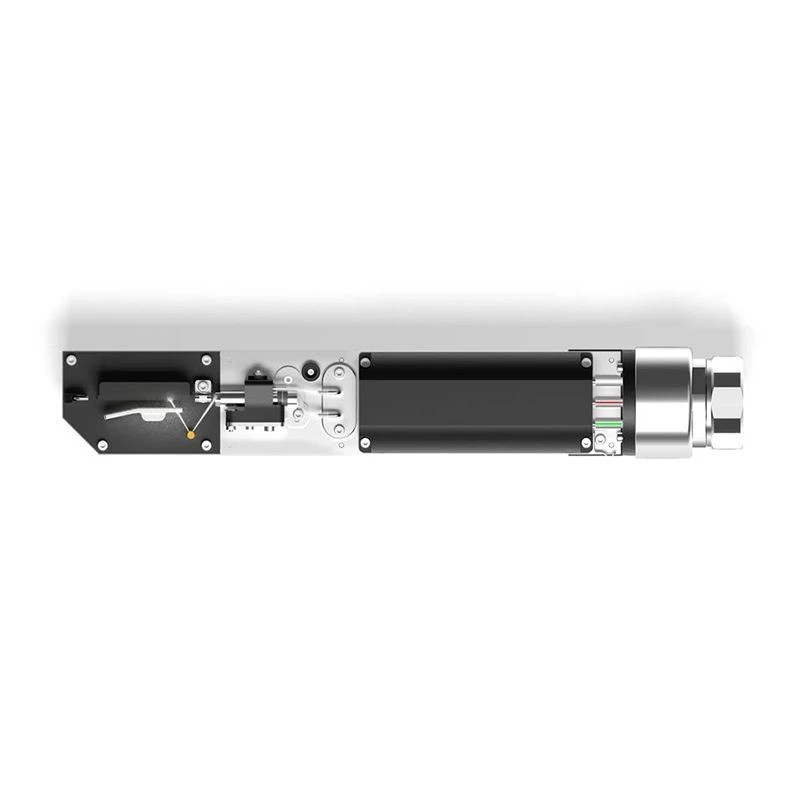

Nozzie size

Length 258mm, diameter 42mm

Pipe length

3 meters

Host machine size

325*300*503mm

Solvent consumption

Minimum to 5.8 ml/hour (specific temperature)

Operating temperature

-20℃-50℃

Relative humidity

<90RH, no condensation

Electrical requirements

Single phase 100-240VAC, 50-60Hz

Weight

22kg
