In the landscape of industrial identification, the shift from basic dot-matrix coding to high-definition digital printing is driven by Piezoelectric Inkjet (PIJ) technology. Unlike traditional continuous systems, OMA JET's A-Series (including the A800 and A900) operates on the Drop-on-Demand (DOD) principle, offering a professional solution for printing complex data with surgical precision.
1. The Core Mechanism: The Piezoelectric Pulse
The "Piezo" in PIJ refers to a specialized ceramic crystal located inside the printhead. When the controller sends a micro-electrical signal, this crystal undergoes an instantaneous physical deformation. This mechanical movement creates a rapid pressure pulse within the ink chamber, ejecting a single, perfectly shaped droplet exactly when needed.
Because this process generates virtually zero heat, it is often called "Cold Jetting." This ensures that the ink chemistry remains stable and that the sensitive printhead components are not subjected to thermal stress, resulting in an exceptionally long operational lifespan compared to thermal inkjet alternatives.
2. Industrial-Grade Printhead Selection: Toshiba, Ricoh, and Seiko
The heart of the OMA JET A-Series is our strategic selection of world-class industrial printheads. Depending on the specific resolution and speed requirements, our systems integrate:
- Toshiba Series (e.g., CF3/CE4): Renowned for their incredible stability and high-frequency jetting, ideal for delicate "One Item, One Code" applications.
- Ricoh and Seiko Series: Optimized for heavy-duty industrial environments, these heads provide robust durability and wide-format printing capabilities for large logos and complex barcodes.
These industrial heads are built from durable materials such as stainless steel, allowing them to withstand the rigors of 24/7 manufacturing without the frequent replacement cycles seen in consumer-grade hardware.
3. Grayscale Control and Variable Droplet Technology
A key technical advantage of the A-Series is the ability to perform grayscale printing. By dynamically adjusting the electrical waveform, the piezoelectric crystal can produce droplets of varying volumes from the same nozzle. This variable droplet technology allows for smooth gradients and razor-sharp edge definition, achieving professional resolutions of 600dpi or higher. This is critical for ensuring that high-density QR codes and DataMatrix codes remain perfectly scannable throughout the entire global supply chain.
4. Intelligent Ink Management and Instant UV Curing
To maintain consistent print quality, OMA JET's PIJ systems feature an advanced ink supply module. This system manages the internal pressure to ensure that every nozzle is primed and ready to fire instantly, even after short pauses in production.

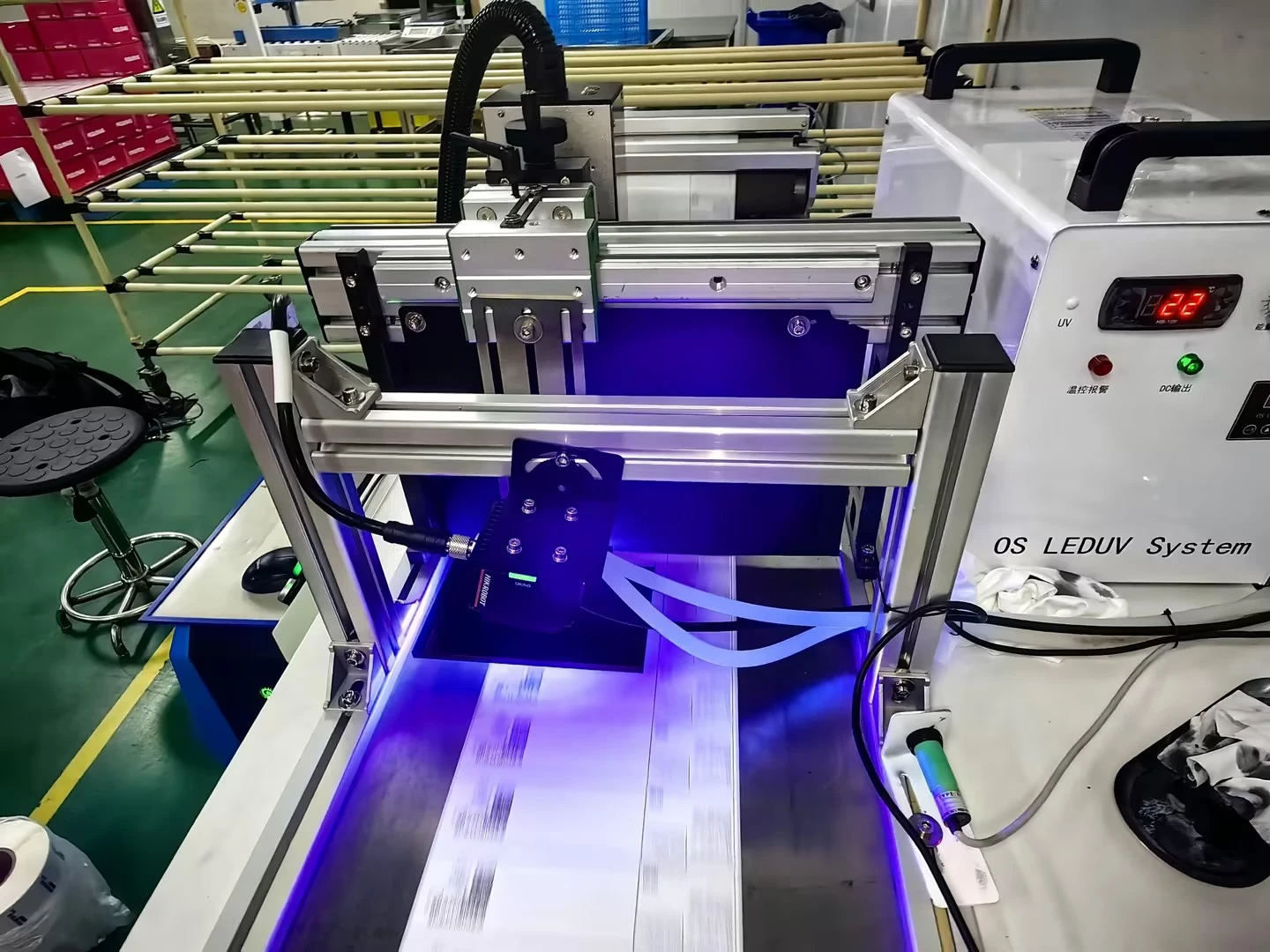

When paired with our integrated UV LED curing modules, the high-pigment ink solidifies the moment it touches the surface. This creates a permanent, high-adhesion mark on non-porous materials like plastic films, glass, and coated metals, eliminating the need for solvents and reducing the overall environmental footprint of your production line.
Conclusion: By combining the mechanical precision of piezoelectric crystals with the durability of industrial printheads, the OMA JET A-Series provides a robust, high-resolution bridge between traditional coding and modern digital printing. It is the definitive choice for manufacturers who refuse to compromise on clarity or reliability.
